Transformer Active Parts
“Always committed to serve you with our best service and innovativeness”

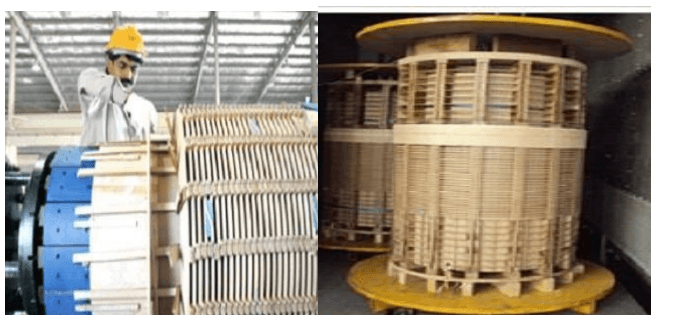

Windings
Main Advantages
Improved PD levels
Stabilization at lowest vacuum levels
Foil construction
Improved reliability
![](http://esi.my/wp-content/uploads/2020/08/active2.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active1.jpg)

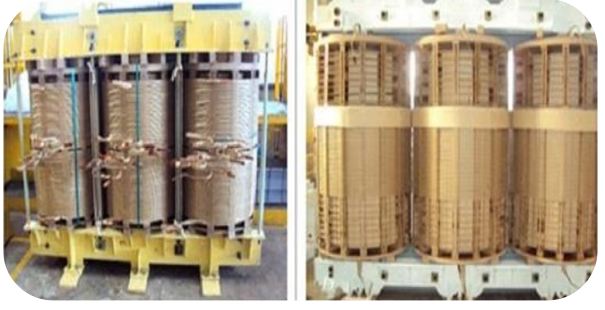

CORE & COIL ASSEMBLY
Distribution Transformer Core / Coil Assembly & Power Transformer Core / Coil assembly up to 65 MT
Main Advantages
Fully stabilized insulation
Improved losses
De-bottlenecking at customer end
Increased output
![](http://esi.my/wp-content/uploads/2020/08/active3.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active4.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active5.jpg)

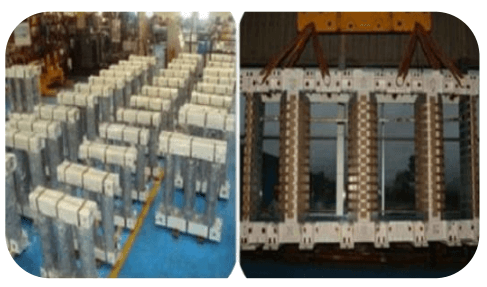

CORES
Fully Assembled / Built cores from 100 Kgs upto 65 MTs weight for Distribution and and Power Transformers built on State-of-art Fixtures with Metal (Laser Cut) / Wooden Frames
Main Advantages
Step-lap Design
Accurate dimensions
Stress-free handling
Faster assembly
![](http://esi.my/wp-content/uploads/2020/08/active6.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active7.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active8.jpg)
![](http://esi.my/wp-content/uploads/2020/08/active9.jpg)
CUT LAMINATIONS
Cut Laminations processed on Georg CNC Cut-to-length lines & suitable for 63 KVA up to 500 MVA / 765 KV rating transformers. Wide range of grades offered – M5 / M4 / Hi – B / Hi – B DR
Main Advantages
Step-lap Design
Accurate dimensions
Stress-free handling
Faster assembly
![](http://esi.my/wp-content/uploads/2020/08/active10.jpg)

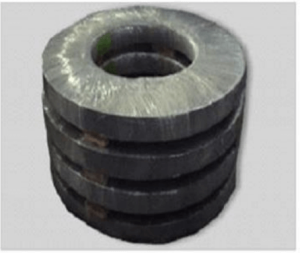

SLIT-TO-SIZE COILS
CRGO Silicon Electrical Steel Coil duly “Slit-to-size” from 50mm – 900 mm width.
![](http://esi.my/wp-content/uploads/2020/08/active11.jpg)
Main Advantages
Accurate widths
Burr-free Slitting by Carbide-tipped knives
